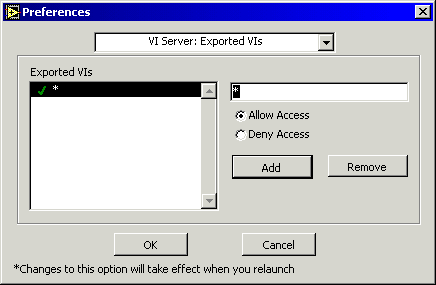

These settings are accessible in the VI Server sections of the Preferences dialog.
| Setting | Description | Type | Default Value |
On Prefs Dialog |
|---|---|---|---|---|
| server.tcp.enabled | Enable TCP/IP Protocol | TF | False | yes |
| server.tcp.port | TCP/IP Port number | numeric | 3363 | yes |
| server.ole.enabled | Enable ActiveX Protocol | TF | True | yes |
| server.vi.callsEnabled | Allow VI Calls | TF | True | yes |
| server.vi.propertiesEnabled | Allow VI Methods and Properties | TF | True | yes |
| server.app.propertiesEnabled | Allow Application Methods and Properties | TF | True | yes |
| server.tcp.access | TCP/IP Access List | quoted | <blank> | yes |
| server.tcp.paranoid | Strict Checking | TF | True | yes |
| server.vi.access | Exported VIs list | quoted | "+*" | yes |
| tcpServer.log | Logging Enabled | TF | False | |
| tcpServer.logDetails | ||||
| tcpServer.logPath | Logging File Path | file |
On Prefs Dialog: Settings marked "yes" in this column are accessible on the Preferences Dialog. Other settings are "undocumented" and can only be changed by directly editing the labview.ini file.
